Corrugated Snap Lock Boxes with an Interlocking Bottom

Custom corrugated snap lock boxes combine a manually assembled interlocking bottom with fluted corrugated board. The bottom uses a sequence of folding panels that lock into position, creating a supportive base without normally requiring adhesive or tape for the initial bottom assembly. The box can be supplied flat and assembled during packing.

This construction is useful when a business needs more rigidity than a lightweight folding carton may provide, while still wanting an organized retail presentation. Typical applications include candle jars, skincare containers, small electronics, packaged merchandise, accessories, product kits, and selected heavier retail items.

The strength of a snap-lock carton depends on the complete construction, not the bottom closure alone. Board grade, flute profile, box size, product weight, top closure, and internal supports must work together. A properly fitted insert or additional shipping carton may be necessary for fragile products or parcel delivery.

How Does a Corrugated Snap Lock Bottom Work?

A snap-lock bottom is assembled by folding its base panels in a defined sequence. The final panel engages with the others, helping the bottom remain closed when the carton is filled. This design is frequently called a 1-2-3 bottom because its locking action follows a short sequence.

1. Prepare the carton: Open the flat-packed box and square its side panels.
2. Fold the supporting flaps: Follow the specified panel order shown on the dieline or assembly proof.
3. Engage the locking panel: Fold the final flap into its locking position to complete the base.
4. Load the product: Add any protective insert, position the merchandise, and close the selected top panel.

Unlike an automatic or crash-lock bottom, a standard snap-lock bottom requires manual assembly. That difference matters when comparing packaging costs and fulfillment speed. Snap-lock construction can avoid a pre-glued automatic base, while auto-lock cartons may be faster to erect in high-volume packing operations.

The interlocking base should be tested with the actual packed product. Box strength cannot be determined from the snap-lock feature alone.

Corrugated Snap Lock vs. Standard Snap Lock and Auto-Lock Boxes

Although these styles may look similar, their materials and assembly methods can differ significantly. The following comparison helps buyers choose the correct structure without confusing a corrugated snap-lock box with a standard folding carton.

If you need the broader paperboard and corrugated style comparison, see our custom snap lock bottom boxes. This page focuses on the corrugated version and its material, structural, and product-protection requirements.

Corrugated Flute Options and Board Selection

The flute is the shaped paper layer between corrugated liners. It influences board thickness, rigidity, print appearance, cushioning characteristics, and the precision of folded locking components. We recommend selecting the flute after reviewing product weight, carton dimensions, expected handling, and the required retail finish.

Not every flute or double-wall construction is suitable for every snap-lock dieline. Thicker boards can change fold tolerance and locking action. The final combination should be approved through structural sampling rather than selected solely from a flute name.

For other corrugated packaging material options, explore our corrugated boxes category.

Custom Sizes and Locking-Base Strength

Each carton can be sized around the actual product, including its outer packaging, cap, lid, protective wrap, accessories, and insert. Product measurements alone may not equal the required finished box dimensions.

For an accurate dieline, provide:

• Product length, width, and height, preferably in inches or millimeters.
• Total packed weight, including containers, liquids, accessories, and inserts.
• Required orientation during display, handling, and shipment.
• Whether multiple products will share one box.
• Desired interior clearance and any fitted protective components.
• Any special stacking, handling, or retail-display requirements.

The base should be evaluated with the filled product to check panel engagement, distortion, bulging, and opening behavior. For a heavy glass jar, for example, the insert and bottom panels must support the full packed load rather than rely on the locking tab alone.

Top Closures, Windows, and Custom Features

The snap-lock design describes the bottom of the carton. The top can use a different closure according to the product, presentation, and packing method.

Top Closure Options

• Straight tuck: A familiar retail closure that suits many upright product cartons.
• Reverse tuck: An alternative tuck-panel arrangement for selected carton layouts.
• Locking tuck: Additional tab engagement where a more secure top closure is required.
• Sealed top: A label, tape, adhesive, or other approved sealing method where appropriate.

Windows and Carrying Features

A die-cut window can display a candle jar, product label, small device, or coordinated gift set. Transparent film may be added when enclosure is required, or a film-free opening may be considered for suitable products. Window size and position must leave adequate material around folds and load-bearing sections.

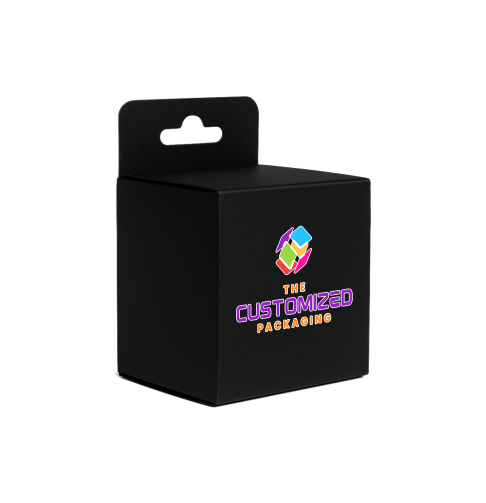

Handles, carrying tabs, or grip openings can also be considered, but their feasibility depends on the board grade, total weight, and how the assembled carton will be lifted. A handle should never be assumed to support an unspecified load.

Custom Printed Corrugated Snap Lock Boxes with Logo

Custom printed corrugated snap lock boxes can carry logos, brand colors, product names, handling instructions, barcodes, and QR codes. Exterior branding is useful for shelf presentation, product identification, and a consistent customer experience across product lines.

Depending on the selected liner, artwork, quantity, and manufacturing method, printing options may include digital, flexographic, or lithographic printing. CMYK or selected spot-color workflows can be reviewed for detailed graphics and brand consistency.

Natural kraft provides a warm brown surface suited to simple typography and restrained graphics. White liners may be preferable for detailed illustrations, light colors, and product photography. Printed results should be approved on a suitable material proof, especially when using fine lines, gradients, or precise brand colors.

Inside printing, branded flaps, customer messages, and printed inserts may also be possible. Decorative finishes such as foil stamping or spot UV require compatibility review with the selected corrugated structure and print surface.

Protective Inserts for Bottles, Candles, Electronics, and Product Kits

Corrugated snap-lock cartons can include fitted inserts to help hold products in the desired position. Insert selection should address product shape, fragility, clearance, unpacking experience, and potential movement during handling.

• Corrugated dividers: Separate multiple bottles, jars, or accessories.
• Die-cut paperboard platforms: Raise or center a product for presentation.
• Fitted collars and supports: Position containers and help limit side-to-side movement.
• Corner pads: Add separation between fragile products and external panels.
• Molded pulp or foam: Offer product-specific support when compatible with the application.

For candle jars and glass containers, the insert should avoid unwanted pressure on lids, pumps, protruding parts, and decorative surfaces. A sample assembled with the filled item gives a more reliable assessment than an empty-box mockup.

Retail Packaging vs. Ecommerce Shipping

A corrugated snap-lock box can be developed for retail presentation, ecommerce order packing, subscriptions, and product distribution. However, a corrugated material specification and an interlocking bottom do not automatically make a carton suitable for every carrier or shipment.

Retail use may prioritize display, branding, easy opening, and shelf fit. Direct-to-consumer shipping places additional demands on closure security, impact exposure, internal movement, and repeated handling.

For ecommerce shipments, we recommend reviewing the complete packaging system:

• Product fragility and filled weight.
• Board grade and flute construction.
• Interlocking-base fit and any additional sealing.
• Protective insert or cushioning requirements.
• Whether an outer corrugated shipping carton is necessary.
• Expected distribution and handling conditions.

Fragile or high-value merchandise may require transit testing and a separate outer shipper. Final structural recommendations should reflect the actual packed product and distribution process.

Recycled Board and Responsible Material Choices

For brands comparing material options, natural kraft liners, selected recycled-content corrugated boards, paper-based inserts, and right-sized cartons may help support specific material-reduction goals.

Environmental characteristics must be evaluated for the finished package. Liners, adhesives, window films, coatings, inks, labels, and inserts can affect disposal or material recovery. Recycled content, certification, recyclability, and other environmental claims should be confirmed for the actual production specification.

We recommend choosing the minimum practical amount of board and protective material consistent with the product's handling and protection requirements, rather than relying on broad environmental claims.

Wholesale Corrugated Snap Lock Boxes: MOQ and Pricing

The cost of wholesale corrugated snap lock boxes depends on dimensions, board construction, flute, number of printing colors, artwork coverage, inserts, windows, finishing, tooling, quantity, and shipping destination.

TCP's standard starting minimum is generally 100 units for eligible custom packaging configurations. Some corrugated constructions, specialty flutes, printing methods, or complex add-ons may require higher production quantities. Final minimums are confirmed during quotation.

Ordering more units may reduce the average box cost by spreading setup and tooling expenses across a larger production run. That does not mean a larger order is always the most economical choice: inventory, storage space, future artwork changes, and cash requirements should also be considered.

Requesting an Accurate Quote

To compare production options, send us your required internal dimensions, filled product weight, desired quantity, preferred liner and flute, printing requirements, any inserts or windows, and the delivery ZIP code. Include existing artwork, packaging photographs, or a reference sample when available.

For an initial budget, use our Custom Box Packaging Cost Calculator. Its result is a preliminary estimate, not a final manufacturing quotation. Final pricing is confirmed after reviewing structural details, production requirements, and delivery.

Why Choose The Customized Packaging LLC?

The Customized Packaging LLC helps businesses develop custom-size corrugated packaging around their products, branding, and order requirements. For corrugated snap-lock cartons, our focus is selecting an appropriate bottom structure, liner, flute profile, top closure, and insert combination for the intended use.

We can assist with dieline preparation, artwork placement, material comparisons, proof review, and project-based pricing. Production and delivery timelines depend on the approved design, quantity, material availability, and finishing requirements.

Ready to develop your custom corrugated snap lock boxes? Share your product dimensions, weight, quantity, artwork, and destination. Our team can review the specification and prepare a quotation for your USA packaging project.
